Automatic Paper Unloading Machine

Kingsun intelligent automaticpaper unloading has the function of identifying paper stack ,size, location, feeling and unloading paper automatically. It can deliver the kinds of the cutting products to the place quickly where you want to book, at the same time, unloading them to the base table where you want to book.

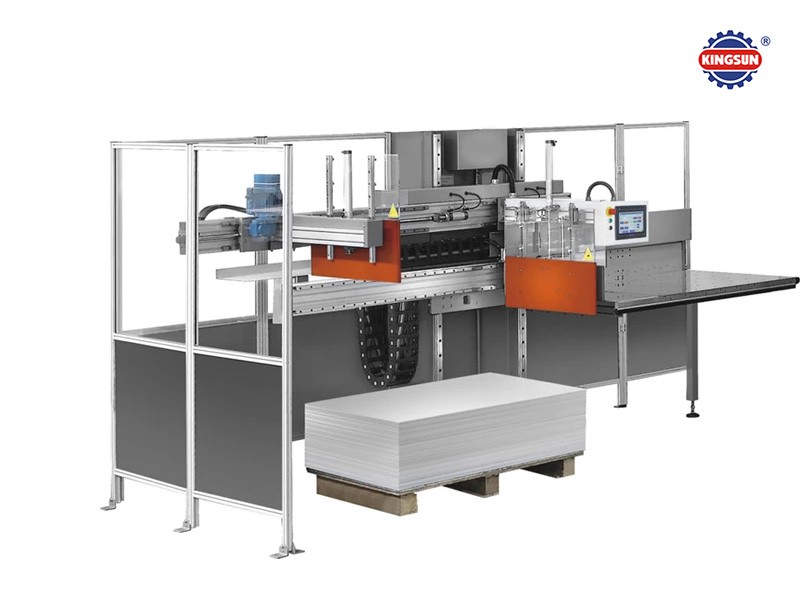

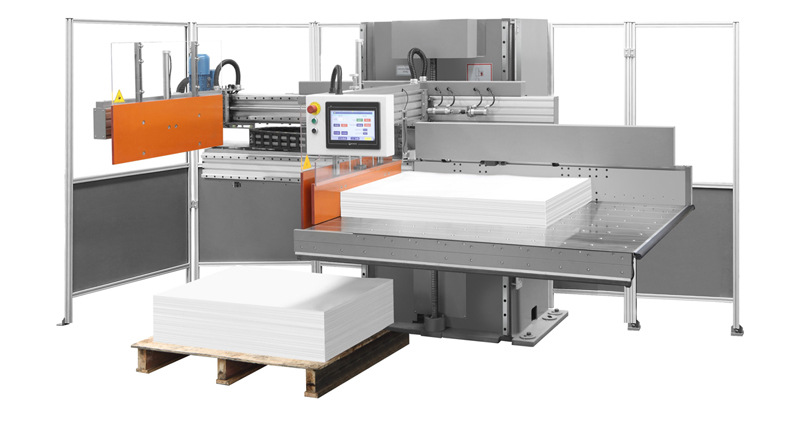

APU 90-4A/130-4A/160-4A/180-6A Automatic Paper Unloading Machine

Kingsun intelligent automaticpaper unloading has the function of identifying paper stack ,size, location, feeling and unloading paper automatically. It can deliver the kinds of the cutting products to the place quickly where you want to book, at the same time, unloading them to the base table where you want to book. The process of feed and unloading, accurate, efficient, reduce labor intensity, improve labor efficiency and increase the working precision.

The machine working table with air balls devices , the process of up and down by the flat worm gear drive ball lead screw , guide-rail , ensure the worktable smooth and accurate . The worktable move around driven by a worm gear reducer drive rack, the guide-rail slider to make table moving easily. This machine has feature of automatic, accurate and efficient feed, unloading advantages. It equip with Japan,Taiwan pneumatic components, France, Germany, Japan, Korea electric components, PLC controller can monitor all the electrical and mechanical section, adopt NSK bearing of low maintenance.

Main technical specifications:

Model

90-4

130-4

160-4

180-6

Max.unloading paper size(cm)

(in)

80x120

31.5x47.2

90x120

31.5x47.2

105x145

31.5x47.2

120x162

31.5x47.2

Min.unloading paper specification(cm) (in)

10x40

7.8x15.7

10x40

7.8x15.7

10x40

7.8x15.7

10x40

7.8x15.7

Max.stack height of paper(cm)

(in)

16.5

6.5

16.5

6.5

16.5

6.5

16.5

6.5

Min.stack height of paper(cm) (in)

4/1.5

4/1.5

4/1.5

4/1.5

Max.table height from the ground(cm) (in)

140

55.1

140

55.1

140

55.1

140

55.1

Min.table height from the ground(cm) (in)

20

7.8

20

7.8

20

7.8

20

7.8

Max.Loading(kg)

200

200

300

400

Total machine power(kw)

3

3

4

6

Paper cutter adapter specification(cm)(in)

92/130/115

36.2"/51.2"/45.3"

92/130/115/137

51.2"/45.3"/54"

155/166/176

61"/65.4"/69.4"

166/176/186

65.4"/69.4"/73.2"

Overall dimension(cm) (in)

295x145x215

116.3x57.1x84.8

310x190x215

122.2x7.9x84.8

345x216x215

136x85.2x84.8

360x240x215

142x94.6x84.8

Machine net weight(kg)

1200

1200

1800

2000


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
